Toshiba TOCP 100 connector is an interface component for fiber optic communication systems, designed to connect fiber optic cables with TOCP 155 fiber modules or other network equipment. It ensures that optical signals can be transmitted efficiently and with low loss.
High Quality Original Toshiba F07 F05 POF Connector TOCP255

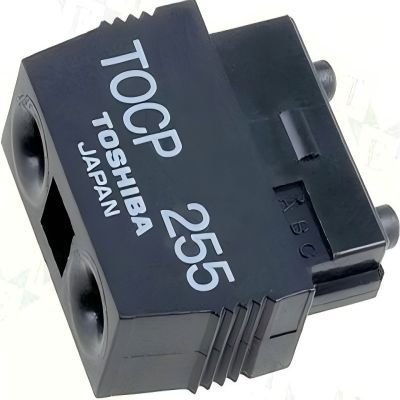

Toshiba TOCP 255
Interface type: TOCP 255
Connector material: Plastic sheath \ metal ferrule
Core material diameter: Φ1.0; (optional Φ0.25, Φ0.50, Φ0.75)
Core material: domestic fiber or imported Japanese fiber
Finished product diameter: Φ2.2; optional Φ2.2mm-10.0mm
Outer cover material: CPE, PE, PVC
Cover color: matte black, other colors can be customized
Attenuation: less than 180dB / km
Working temperature: -55 ℃-+ 85 ℃
Standard length: 1000mm, any size can be customized 0-100m
Compliance with standards: European ROHS certification
CE certification
Toshiba Standard
Scope of application:
Data transmission and industrial automation control bus system
Industrial robot intelligent system and servo system
Communication switching system
Digital multimedia system
Medical sensing system
Power system
