The MOST (Media Oriented SystemsTransport multimedia guidance system transmission) standard was jointly formulated by 16 major European car manufacturers in 2000. The standard specifies plastic optical fiber as the transmission medium of the data network in the car, mainly supporting the application of in-car entertainment information, so that The transmission speed of information in the car reaches 900Mbit / s.
M.O.S.T. (Media Oriented SystemsTransport multimedia guidance system transmission) is a local area network that connects audio equipment, car TV, global positioning system and car phone equipment to each other. It occupies a dominant position in the field of short-distance data transmission and industrial automation, especially in terms of improving car safety performance and infotainment functions. Development and application of plastic optical fiber connection technology; in conjunction with the application of plastic optical fiber in automobiles, a series of M.O.S.T. plastic optical fiber patch cords were launched to ensure high quality standards of M.O.S.T. plastic optical fiber patch cords with strict end surface polishing technology and rigorous optical fiber testing methods.

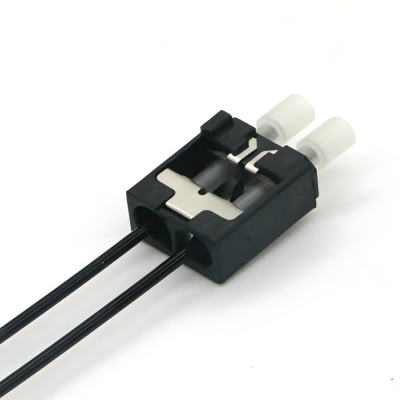

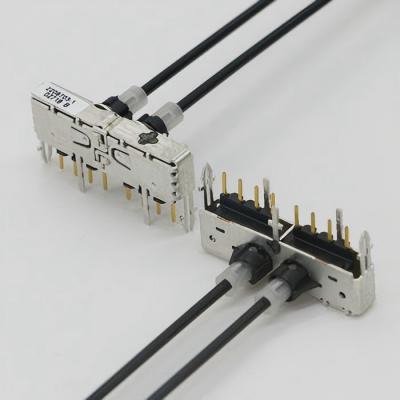

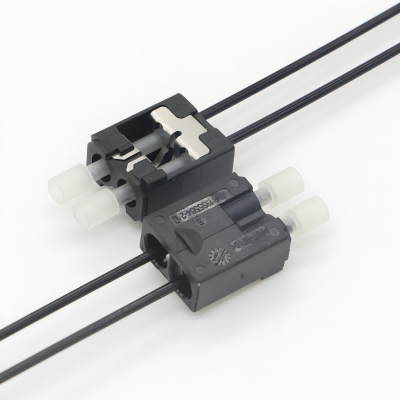

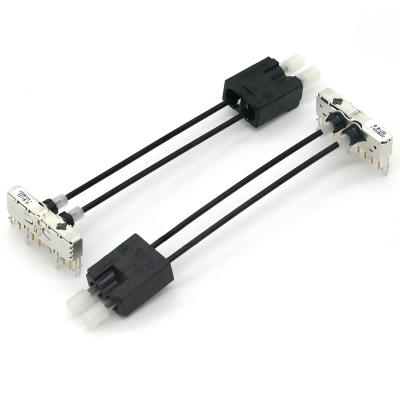

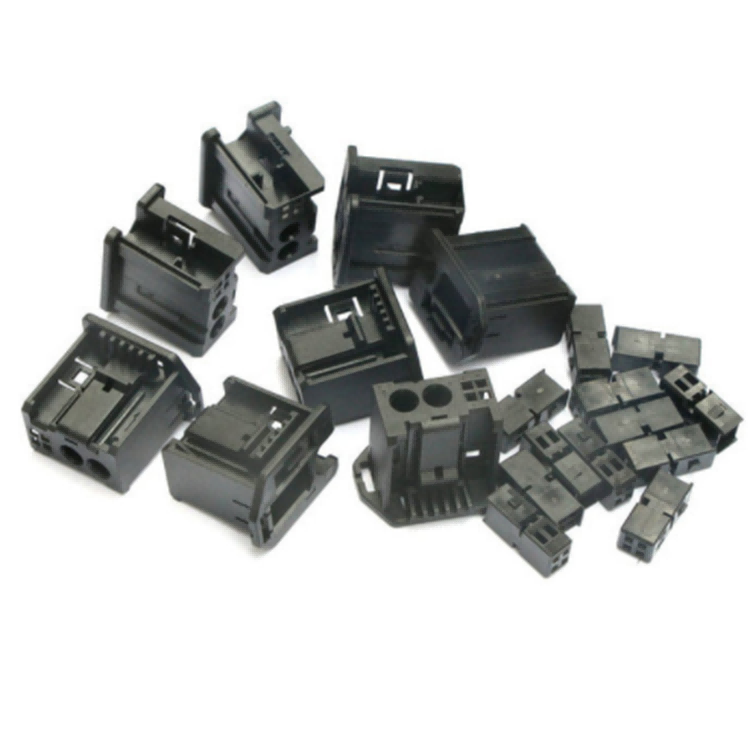

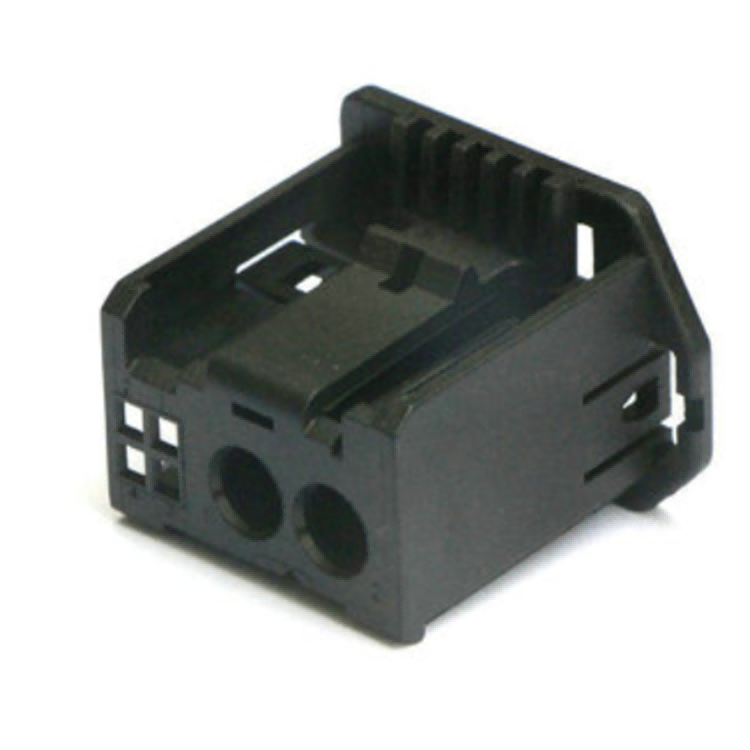

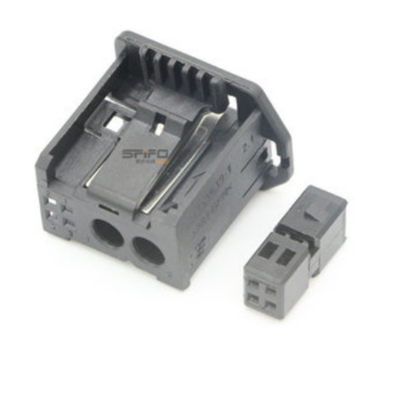

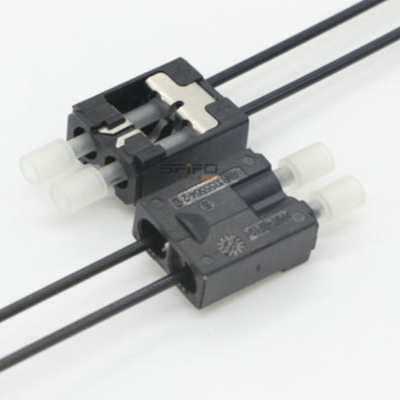

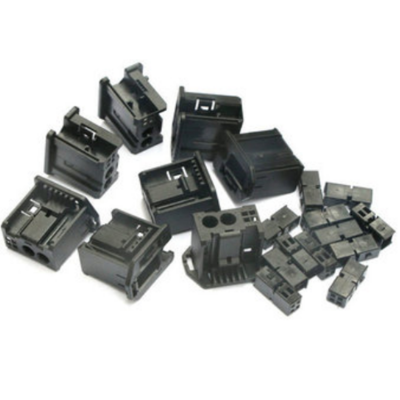

1355426-02 Most Automotive Connector
automotive ecu connector
car Connector for car use
Features:
Light weight, save car wiring space
Data is not affected by electromagnetic interference
High-speed data transmission, large data volume, MOST25 standard
Data rate is 25Mbps, the highest data of MOST150 standard
150Mbps
Can transmit synchronous data, asynchronous data and control data
Support Plug and Play (Plugand Play) mechanism
Multimedia devices connected
Scope of application:
Digital broadcasting
Video display
Interactive Security System
GPS navigation system
Multimedia entertainment system
product features:
Using self-developed MOST plastic fiber optic connectors for automotive, bayonet design, compact structure, tensile, waterproof, high temperature design, low insertion loss, high-precision coupling, can ensure maximum data transmission, accurate polishing, outside the wire It is made of PE, PVC and other materials, anti-wear, anti-corrosion, anti-pressure, high and low temperature non-conductive, no electromagnetic interference radiation. It is specially designed for automotive multimedia systems and exceeds the industry standard assembly process. It has been used in European and Japanese brand cars Widely used
Performance specifications:
Core material diameter: Φ1.0
Core material: imported Japanese optical fiber
Finished product diameter: Φ2.3
Outer cover material: CPE, PE, PVC
Cover color: orange, other colors can be customized
Attenuation: less than 180dB / km
Working temperature: -55 ℃-85 ℃
Standard length: 1000mm, any size can be customized 0-100m
Compliance with standards: European ROHS certification, CE certification
