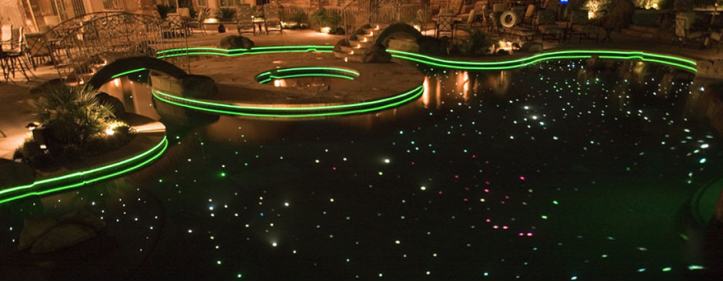

1.Application

2.Product 1(Optical fiber underwater light):

Fiber optic cable + Buried lights + Light engine with waterproof box

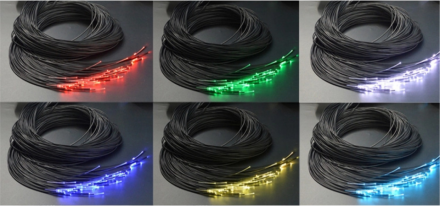

                                          1)Commonly used Fiber optic cable 1mm, 3mm , 5mm                                              2)Buried lights

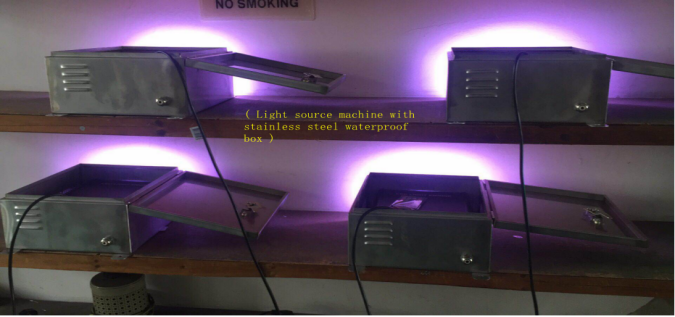

  3)Light source machine with stainless steel waterproof box (Can not be placed in water)

 3.Questions and confirmation：

  1)Products can be purchased separately

  2)Design solutions for your swimming pool,due to  this is a non-standard customized product ,please provide below

 *Swimming pool area

 *What is the diameter will you go for ? how many fiber you want in each sqm ?

 *The position of the light source

 *Do you need the waterproof box?

 *It would be better if you could send us a picture of your pool

  3)MOQ of fiber :50 m, MOQ of Buried lights :20 pcs, MOQ of light source :1 sets

  4)weight of fiber: 0.01kg /m ,weight of Buried lights :0.02kg /pcs ,weight of light source:1.5kg /set

4.Installation

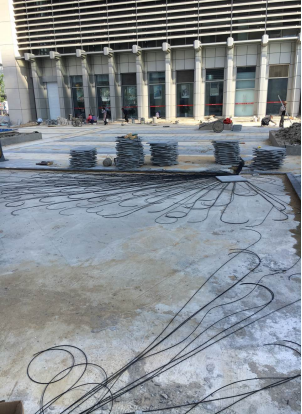

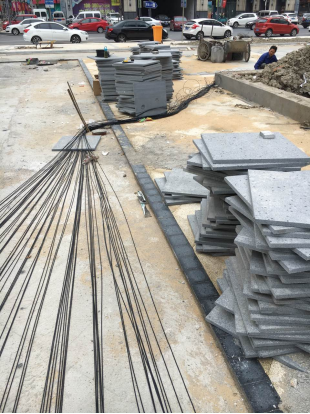

Schematic diagram of optical fiber wiring for swimming pool, square, aisle, corridor

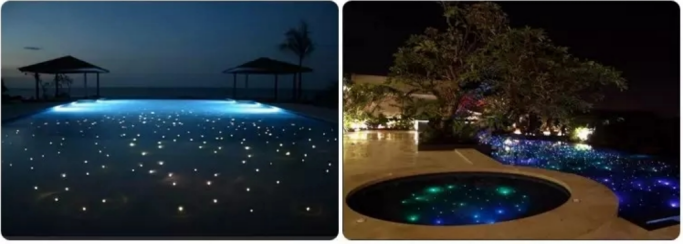

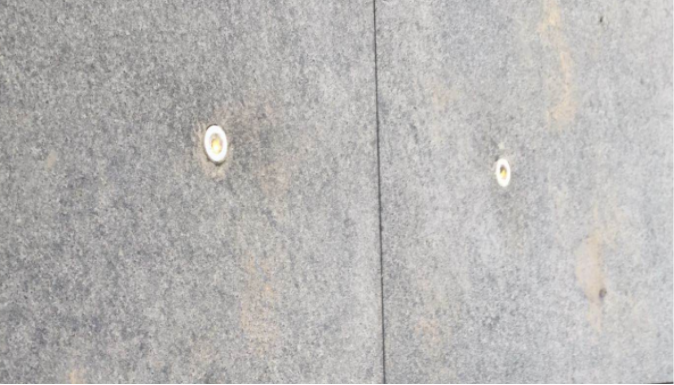

5.Installation effect:

6.Product 2(Fiber optic side wall light):

   10 mm optical fiber + light source machine+ waterproof box

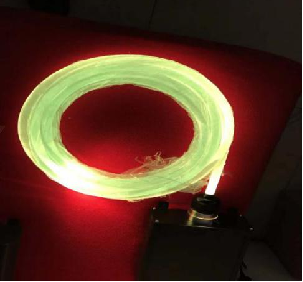

                                                        10 mm Optical Fiber                                                                Light Engine

Waterproof Box                                                        Effect Picture

 7. Questions and confirmation：

  MOQ of fiber :100 m, MOQ of light source: 100set

  Delivery: about 1 week

  Weight of fiber 0.12kg /m, weight of light source with waterproof box: 1.5kg /set

 8.Description:

      Description: Optical fiber is waterproof, light guide, non-conductive;

      Light source voltage: 110V~220V

      Light source machine: 45w, RGB. Not waterproof, you need a waterproof box, put the waterproof box on the shore,

      Slowly introduce the optical fiber into the water from the position of the machine. Starting from the optical fiber, it is not conductive because it is plastic and safe. The optical fiber for swimming pool is the safest solution.

9.Installation:

The light source machine is placed on the shore with a waterproof box, a little far away from the swimming pool.

The optical fiber is fixed on the edge of the swimming pool (according to the situation on site. tie can also be fixed)
